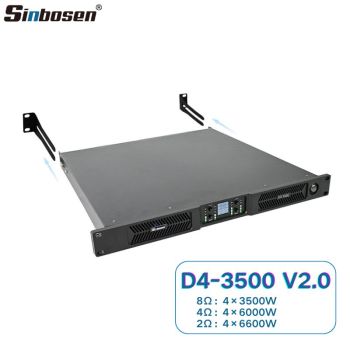

D4-3500 V2.0 3500W 4 Channel 1U Class D Power Amplifier PA Subwoofer With Brackets and Temperature Monitoring

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

contact supplier

Paramtents

Packging & Delivery

Briefing

4 channel digital power amplifier stable work 2 ohms 6500w

Detailed

Specifications
8Ω Stereo Powe	4x3500W RMS
4Ω Stereo Powe	4x6000W RMS
2Ω Stereo Powe	4x6600W RMS
Amplifier Type	1U, Class D, 4-channel digital power amplifier
Operating Voltage	90-260V 60Hz/50Hz
PFC	Yes, 1U digital 4-channel power amplifier with PFC
Maximum Output Voltage/Current	185V/85A (370V in the BRIDGE MODE)
Cooling system	Tunnel through cooling system
Frequency Response	20 Hz - 20 kHz
Signal-to-Noise Ratio	>110 dBA (20 Hz - 20 kHz, A weighted)
Crosstalk	>66 dB @1 kHz
Input Impedance	10 kΩ balanced
Operating Temperature Range	0°C-45°C (32°F-113°F)
Dimensions (W x D x H)	482mm x 460mm x 44mm
Shipping weight	16kg

D4-3500 Amplifier Feature：

●4 x 3500 Watts into 8 Ohms

●4 x 6000 Watts into 4 Ohms

●4 x 6600 Watts into 2 Ohms

●Suit for line array, full range speaker (2Ω),and subwoofer(4Ω)

●4 Channel Class D Digital power amplifier

●Mini 1U size,convenient for Touring Applications

●Work Under 2Ω steadily !

●Precise and Reasonable circuit structure

●Bring supper reliable sound

●Bridge-mode operation

●Temperature protection;Over current protection;Short circuit protection built-in

●Nippon Chemi-Con capacitor

●DANTE function is selectable, cost more 150USD
