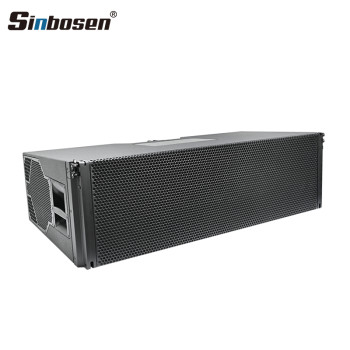

Double 14" Passive Large format 3-way line array loudspeaker

The line array module designed specifically for large-scale sound reinforcement, it can be vertically aligned to produce a constant 80° directional diffusion pattern in the horizontal plane. It is equipped with two 14-inch forward-facing neodymium low-frequency drivers and two side-facing 10-inch neodymium low-frequency drivers. The coaxial midrange section includes a midrange horn with a 10" driver and three 1.4" output, 3.4" voice coil high-frequency compression drivers mounted on a dedicated waveform shaping unit. This allows for an inter-cabinet angle from 0° to 7° in 1° increments. This enables a smooth crossover design with clear overlap between adjacent frequency bands, providing consistent, uniform, and highly accurate horizontal dispersion. Precise directivity control is maintained from 45 Hz to over 18 kHz thanks to the arrangement of the front and side low-frequency drivers. The cabinet is constructed of marine-grade plywood with a shock-resistant and weatherproof PCP (polyurea cabinet protection) finish. The front and side panels feature a robust metal grille, backed by an acoustically permeable and waterproof fabric. Each side panel has a recessed handle, with an additional handle provided at the rear.
