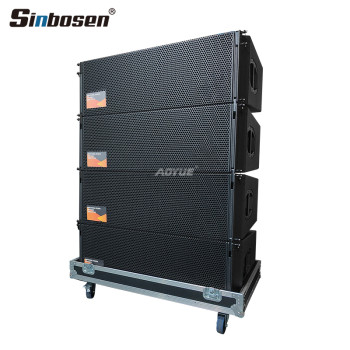

3-Way double 12 inch professional line array speakers

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

contact supplier

Paramtents

Packging & Delivery

Briefing

3-Way double 12inch line array

Detailed

Frequency response (-5 dB standard)		48 Hz - 17 kHzHz
Frequency response (-5 dB CUT mode)		85 Hz - 17 kHz
Configuration		Large format 3-way line array loudspeaker
Nominal impedance		6 Ω (LF) / 12 Ω (MHF)
Power handling capacity LF (RMS/peak 10 ms)		500/2000 W
Power handling capacity MHF (RMS/peak 10 ms)		200/800 W
Nominal dispersion angle (h x v)		80°²
Splay angle settings		0 - 7° (1° increment)
Components		2 x 12" driver / 1 x 10" driver 2 x 1.4" exit compression driver passive crossover network
Connections		2 x NLT4 F/M optional 2 x EP5 or 2 x NL8
Dimensions (H x W x D)		360 x 1100 x 570 mm 14.2 x 43.3 x 22.4"
Weight		60 kg/132 lb

Feature：

1.2x12" LF; 1X10" MF; 2X3"HF neodymium drivers.

2.High quality compact birch wood enclosure.

3.Large format 3-way line array loudspeaker.

4.First grade Russian birch plywood and muti-layer spray polyured waterproofing coating.

5.It can be used in columns of purely JT-08 loudspeakers or combined with JT-SUB.
