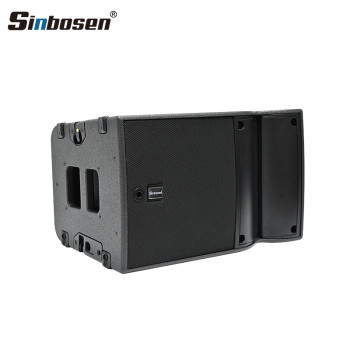

2-way dual 10-inch passive professional line array speakers

group name: LINE ARRAY SPEAKER

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: KA10

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 19 Dec 2025 22:25:32 GMT

contact supplier

Paramtents

Usable bandwidth (-10 dB) 66 Hz – 20 kHz
Maximum SPL1 140 dB

Packging & Delivery

Min Order1 piece

Briefing

2-way dual 10-inch passive professional line array speakers

Detailed

Usable bandwidth (-10 dB)		66 Hz – 20 kHz
Maximum SPL1		140 dB
Nominal directivity (-6 dB)		Enclosure: 10° L-Fins : 110° / 70° symmetric ; 90° asymmetric
Transducers		LF: 1 × 10″ cone drivers HF: 1 × 2.5″ diaphragm compression drivers
Acoustical load		LF: bass-reflex, L-Vents HF: DOSC waveguide; Panflex
Nominal impedance		8 Ω
Connectors		2 × 4-point speakON
Rigging and handling		flush-fitting 2-point rigging system 2 × handles 8 × corner stop 2 × ground runner
Dimensions		581 mm ( 22.9 in) / 350 mm (13.8 in) / 367 mm (14.5 in)
Weight (net)		22 kg / 49 lb
Cabinet		premium grade Baltic beech and birch plywood
Front		Coated steel grill Acoustically neutral 3D fabric
Rigging components		High grade steel with anti-corrosion coating

Overview

This 10-inch passive two-way compact line array loudspeaker is designed for mid-distance projection, flexible installation, and concert-quality sound reinforcement. It delivers high-fidelity sound with clear vocals and excellent music reproduction.

Feature：

1. Compact size, delivering high sound pressure level and excellent sound-to-volume ratio

2. Flexible installation options including vertical, horizontal, and hanging

3. High-quality neodymium magnet speaker and birch plywood
