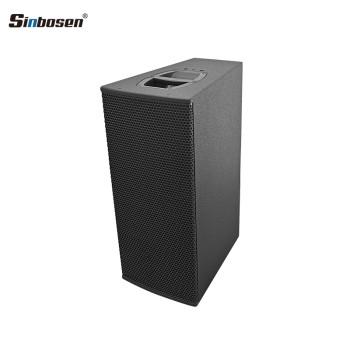

Dual 10" high performance 3-way passive point source loudspeaker
- group name
- Point Source Speaker
- Min Order
- 1 piece
- brand name
- Sinbosen| Audio sound system manufacturer
- model
- V-7
- Nearest port for product export
- Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Sat, 29 Nov 2025 20:36:54 GMT
Paramtents
Maximum SPL 140 dB
Nominal impedance 8 Ω
Frequency response 59 Hz - 18 kHz
Power handling capacity 500/2000 W
Packging & Delivery
-
Min Order1 piece
Briefing
High performance 2-way passive point source loudspeaker
Detailed
Product Parameters
| Max. sound pressure | 140 dB | ||||
Frequency response (-5 dB standard) | 59 Hz - 18 kHz | ||||
| Frequency response (-5 dB CUT mode) | 100 Hz - 18 kHz | ||||
| Cabinets per amplifier channel | 2 | ||||
Configuration | High performance 3-way passive point source loudspeaker | ||||
Nominal impedance | 8 Ω | ||||
Power handling capacity | 500/2000 W | ||||
Nominal dispersion angle | 75° x 40° | ||||
Components | 2 x 10" LF driver with neodymium magnet
1 x 8" MF driver with neodymium magnet
1 x 1.4” exit compression driver
Passive crossover network | ||||
Connections | 2 x NLT4 F/M
optional 2 x NL4 M | ||||
Dimensions (h x w x d) | 700 x 308 x 466 mm
27.5 x 12 x 18.3" | ||||
Weight | 33 kg
75 lb | ||||
This three-way passive point source speaker boasts a compact size yet delivers a peak sound pressure level of 140 dB, while its 75° x 40° rotatable horn ensures constant directivity. Multi-point mounting and a polyurea-coated marine-grade plywood enclosure allow for quick and reliable deployment in any location.
Feature：
●Three-way passive system with 2×10" LF, 8" MF, and 1.4" HF drivers
●High SPL capability: Maximum sound pressure level of 140 dB
●Plywood enclosure with polyurea coating and steel mesh grille, designed for touring and outdoor fixed installations
●Versatile rigging options including flying, stacking, and pole-mounting for flexible venue adaptation
