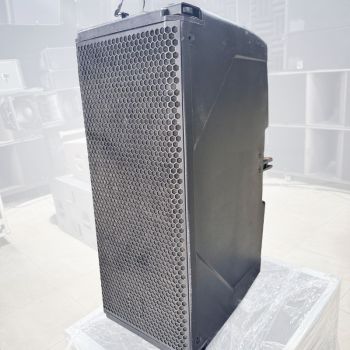

H-30A Neodymium Driver Dual 10-inch active 2-way Line Array Speaker module

group name: LINE ARRAY SPEAKER

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: H-30D

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Wed, 27 Aug 2025 00:36:27 GMT

contact supplier

Paramtents

Frequency range 50 Hz – 20kHz
Impedance 8 Ohms LF 8 Ohms HF
max SPL 137 dB

Packging & Delivery

Min Order1 piece

Briefing

H-30A Neodymium Driver Dual 10-inch active 2-way Line Array module

Detailed

Product Specification

Drivers		2 x 10'' neo, 1 x 1.4'' neo
Frequency range		50Hz-20kHz
Power capacity programm / peak		1100W RMS 2200W peak
Impedance		8 Ohms LF / 8 Ohms HF
Horizontal coverage angle		100 degrees
Vertical coverage angle		15 degrees
SPLmax / 1 m / peak		137 dB
Active module		2CH class-D digital amplifier
Dimensions (h x w x d)		705502293mm
Weight		45kg
Cabinet		plastic

Bi-amped 2-way active touring system for medium to large events, both indoors and outdoors. It features two 10-inch woofers and an impressive 4-inch titanium compression driver.Built-in 2200-watt Class d amplifier offers excellent playback clarity and a maximum SPL of 137 decibels. Low weight for easy handling and flying.

Product Feature：

● 2 x 10" Neodymium Woofers, 2.5" voice coil

● High frequencies - Superior compression driver with extreme precision in high frequency reproduction.

● Low frequencies - High power woofers. Very high efficient and controlled bass reproduction.

2 X 2.5”voice coil neodymium 10” woofers

Low frequencies handling down to 50 Hz

Water resistant fibre doped cone

Hypervented magnetic structure

● Powerful class D amplifiers
