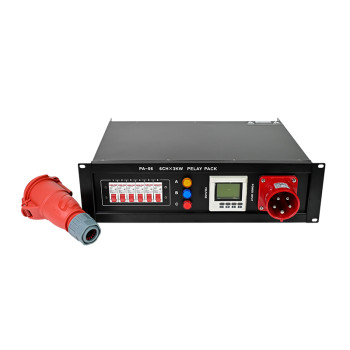

6 channels professional audio equipment power distributor

group name: POWER DISTRIBUTOR

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: PA-06

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 18 Jan 2025 12:54:26 GMT

contact supplier

Paramtents

Panel Color Iron Black
Power Output Channels 6 universal socket outputs

Packging & Delivery

Min Order1 piece

Briefing

Powerful, secure, and portable power box for high-power applications and multi-device power supply scenarios

Detailed

Overview：

The worldwide wide voltage input, 6 sets of high power universal socket output, independent air switch protection, durable phosphorous copper socket, manually controlled channel switch, three-phase waterproof plug and compact 3U body design provide a powerful, safe and easy-to-carry power solution, especially for applications requiring high power output and multi-device power supply.

Attribute	Details
Panel Color	Iron Black
Power Input Conditions	AC90-260V 50-60Hz, Three-phase (Three wires: Neutral, Hot, Ground)
Power Output Channels	6 universal socket outputs
Maximum Power Per Channel/Total Power (Reactive Power)	5000W/10000W Maximum Reactive Power
Output Power Sockets	Maximum 16A current, phosphor bronze material, standard universal sockets
Protection Features	Independent circuit breakers for each channel, automatically cut power in case of short circuit or overcurrent to protect audio equipment
Functional Features	Manual control for each channel on/off
Power Supply Specifications	Suitable for global voltage AC90-260V 50-60Hz
Main Cable Specification	Three-phase waterproof plug
Activation Type	Circuit breaker on/off
Dimensions	482MM (L) x 315MM (W) x 132MM (H) (Standard 3U)
Single Unit Packaging Size	528MM (L) x 518MM (W) x 180MM (H), Net Weight: 7.65KG, Gross Weight: 10.25KG
1 Unit Packed Weight & Dimensions	1 unit per pack, Gross Weight: 10.25KG, Outer Packaging Dimensions: 530mm (L) x 530mm (W) x 200mm (H)
