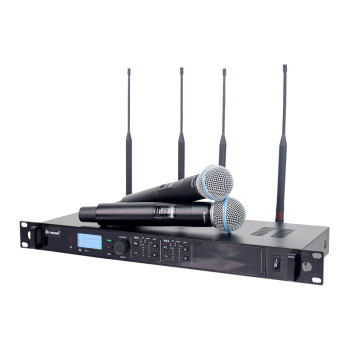

Sinbosen Professional stage dual channels dynamic wireless handheld microphone

 Receiver Specifications

 Frequency Range:

 635MHz-690MHz/ 800MHz-855MHz

 Modulation Mode:

 FM(PLL)

 Number of channels:

 70

 Bandwidth:

 42MHz

 Channel spacing:

 350KHz

 Frequency stability:

 ± 0.005%

 Dynamic range:

 95dB

 Maximum offset:

 ± 55KHz

 Frequency response:

 60HZ-18KHz (±3dB)

 Signal to noise ratio:

 > 102dB

 T.H.D:

 ≤ 0.8%

 Output Socket:

 Balanced XLR and MIC Output

 Output Level:

 0~300mV (ADJ)

 Power Supply:

 12-18V DC/1A

 (mm)Dimension(mm):

 48.5X43X10.5

Transmitter Specifications

 Frequency Range:

 635MHz-690MHz/ 800MHz-855MHz

 Number of channels:

 Number of channels:

 Channel spacing:

 350 KHz

 RFoutput:

 10mw

 Spurious Rejection:

 >55dBc

 Bandwidth:

 42MHz

 Maximum modulation depth:

 ±55KHz

 Frequency response:

 60HZ-18KHz(±3dB)

 S/N ratio:

 >102dB

 Input voltagemic 1V max:

 mic 1V max

 Power:

 2x1.5V (AA)

 Battery use of time:

 >8h
