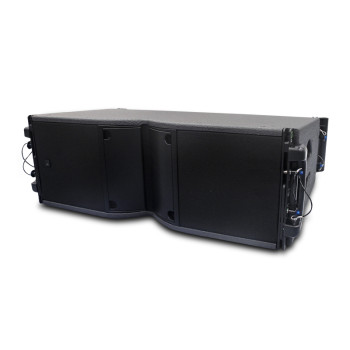

KA208Ⅱ 2-way dual 8-inch line array speakers
- group name
- LINE ARRAY SPEAKER
- Min Order
- 4 piece
- brand name
- Sinbosen| Audio sound system manufacturer
- model
- KA208Ⅱ
- Nearest port for product export
- Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 22:13:41 GMT
Paramtents
Rated Power (RMS) LF:450W / HF:100W
Nominal Impedance LF: 8 Ohm or 16 Ohm
Sensitivity(1W/1m)db 102dB (1w@1m)
Maximum Peak SPL 125dB (Pmax@1m)
Dispersion(-6dB) 110° Hor × 10° Ver
Finish Polyurea coating
Cabinet Birch plywood
Packging & Delivery
- 75cm x54cm x71cm
-
Min Order4 piece
Briefing
KA208 Line array dual 8 inch passive speaker pa system
Detailed
Specification
| KA208 Specification | |
| Usable bandwidth (-10dB) | 55 Hz - 20 kHz |
| Directivity | H: 70° / 90° / 110° V: 10° |
| Nominal directivity (-6dB) | Horizontal 110° symmetric |
| Vertical: Dependent upon number of elements and line source curvature | |
| Maximum Peak SPL | 125dB (Pmax@1m) |
| RMS handling capacity | LF: 450 W HF: 100 W |
| Components LF: 2 x 8'' neodymium weather-resistant | |
| HF: 1 X75mm neodymium diaphragm compression driver | |
| Nominal impedance: LF = 8 ohms or 16ohms, HF = 8 ohms | |
| Dispersion(-6dB) | 110° Hor × 10° Ver |
| Component Configuration | LF: 2 * 8 inch HF: 1 X75mm |
| Cabinet | Plywood with polyurea coating |
| Dimension (W x H x D) | 733 x 252 x 482 mm |
| Weight (net) | 26 kg |
| Connectors | 2 x 4 Neutrik SPEAKON |
| Material | Birch plywood |
8 inch LF（1）
8 inch LF（2）
75mm HF
Rigging Detail
Rigging Detail
Rigging Detail
| ●Best-in-class SPL per weight and footprint |
| ●4 horizontal directivities |
| ●Clear low-frequency power |
| ●KA208 is designed to simplify shipping, storage and deployment |
| ●Ideal for applications that require clarity and distance capability, such as performing arts, rallies, large corporate or special events |
Feature of KA208 Ⅱ
On the basis of KA208, FINS is added, which can adjust the coverage angle.
