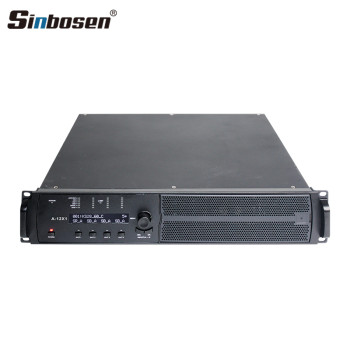

4 channel DSP software power amplifier

group name: DSP Amp For Subwoofer

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: LA12X

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sun, 24 Nov 2024 05:47:15 GMT

contact supplier

Paramtents

COLOR BLACK
Class DSP amplifier
Warranty 3 Years
Special service OEM service offered
Certification CE ROHS
Channels 4 channel

Packging & Delivery

Min Order1 piece

Briefing

Professional dsp software control power amplifier LA12X. 1800W at 8 ohms ; 3000 watt at 4 ohms!

Detailed

4 Channel power amplifier with DSP

8Ω Stereo Power:	4x1800W
4Ω Stereo Power:	4x3000W
2Ω Stereo Power:	4x3200W
THD (20Hz-20kHz for 1W):	<0.1%
THD (1kHz and 1 dB below cipping;	<0.05%
DSP Processor:	DFM
Signal Noise Ration:	>120dB
Frequency Response(+/-0. 1dB):	10Hz-34kHz
Damping cefficient:	>500
Impedance(balanced/unbalanced):	20KΩ/10KΩ
Gain (opliona):	35dB
Output socket:	Speakon Connectors(NEUTRIK)
Input socket:	Combo XLR type,3pin(NEUTRIK)
Power Requirement:	100-240V-50Hz

DSP CONTROL:

Connect the computer for DSP software operation, which is equivalent to the work of a processor.
DSP Function:In Level,Gate,Feedback,In Filter,In Limiter,In Delay,Matrix,Signal,Out Level,Out Filter,Out Limiter,Preset,Settings,Security etc.

This DSP has below feature:

4*1800W 8ohms

4*3000W 4ohms

DFM DSP control from Gemmany

Enthernet Control

100V-240V wide voltage power supply

High efficient cooling system
