DS-14K 4 channel professional subwoofer power amplifier 2 channel 2000 watts

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

contact supplier

Paramtents

Packging & Delivery

Briefing

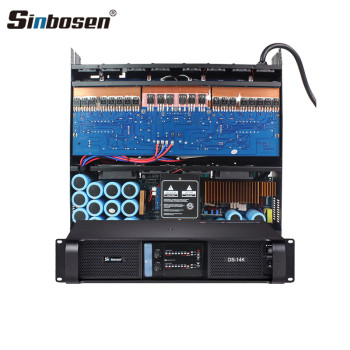

Sinbsoen DS-14K POWER AMP : 2 channelx4400 Watts into 4 Ohms, 2 channelx2400 Watts into 8 Ohms.
Suitable for 18" subwoofer.

Detailed

New upgraded DS-14K amplifier details

1. Use original "Siemens" capacitors.

- 12 3300uf/200V(2 more than the old version)

- 4pcs 2200uf/200V

2. High quality blue magnifying plate.

3. Use the original "Sanken" and "Fairchild" transistors.

4. Built-in 8 small fans, upgrade cooling system, energy saving and high efficiency

5. Use Swiss XLR brand - Neutrik.

Sinbosen high power 4400w 2 channel lab DS-14K amplifier for dual 18-inch bass

One DS-14K switch high power amplifier can use with 2 pcs Dual 18 inch speaker

DS-14K SPECIFICATIONS：

8 ohms Stereo Power: 2x2400W

4 ohms Stereo Power: 2x4400W

8 ohms Bridged Power: 8800W

4 ohms Bridged Power: 14000W

Frequency Response(+0/-0.3dB,1W/8Ω): 20 Hz - 34 kHz

THD 20 Hz - 20 kHz for 1 W: <0.1%

Signal-to-Noise Ratio: >112 dBA

Channel separation (Crosstalk) at 1 kHz: >70 dB

Input Connectors (per channel): 3-pin XLR, electronically balanced

Output Connectors (per channel): Binding Posts 2-pole

TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn-on/off transient, current inrush,sub/ultrasonic input

Operating voltage, 230 V / 115 V nominal: 130-265 V / 65-135V selectable

Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable

Input impedance: 20 kOhm

Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB
