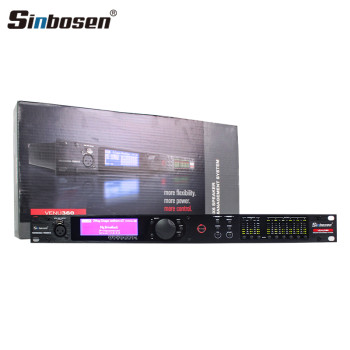

Professional digital dsp audio processor 3 in 6 out
|
3 input 6 output audio processor
|
Input |
(3) analog line inputs/(2) AES digital inputs (shared connectors), (1) RTA mic input |
|
Input Connectors
|
(3) female XLRs (2 selectable between analog/AES digital audio formats), (1) female XLR RTA mic input |
Input Type | Electronically balanced/RF filtered |
Input Impedance | > 30 kΩ, balanced line to line |
|
Max Input Level (line inputs)
|
> +28 dBu, balanced, ≤1% THD |
CMRR | > 50 dB @ 1 kHz |
RTA Mic Preamp Phantom Power | +48 VDC |
Output | (6) Line Outputs
|
Output Connectors | Male XLR |
D/A Converter
| 24-bit |
D/A Dynamic Range | 116 dB A-weighted, 113 dB unweighted, 22 kHz BW |
Internal Processing Wordlength | 32-bit floating point |
Frequency Response | 20 Hz – 20 kHz, +0 /- 0.5 dB |
Power Consumption | 18 W |
Dimensions | 1.75” (H) x 8.0” (D) x 19” (W), 4.4cm (H) x 20.32cm (D) x 48.26cm (W) |
INPUT PROCESSING
- Compression
- AFS™ (Advanced Feedback Suppression)
- 31-Band Graphic EQ
- 12-Band Parametric EQ (with narrow notch capabilities)
- Subharmonic Synthesis
- Backline Delay
- Noise Gate
OUTPUT PROCESSING
- Crossover (supports full range up to mono 6-way systems)
- 12-Band AutoEQs (8 AutoEQ bands, 4 User bands)
- Compression
- Automatic Gain Control
- Subharmonic Synthesis
- Noise Gate
- Tower Delays (up to 1000ms per output)
- 8-Band Parametric EQs (used for speaker tunings)
- Limiting
- Driver Alignment Delays
TESTED WIRELESS ROUTERS:
- Dlink 636L
- Dlink Cloud router 2000
- Cisco / linksys: WRT54G2V1
- Netgear WGR614 v7
- Netgear WNR 1000
