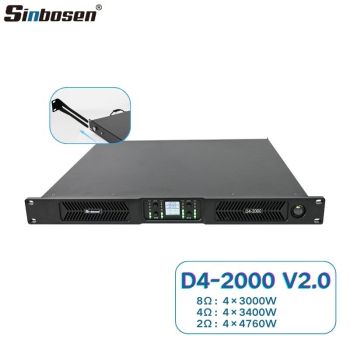

D4-2000 4 Channel 1U Power Amplifier for Line Array Speaker

group name: 2 Ohms Stable Amplifier

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: D4-2000

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:53:35 GMT

contact supplier

Paramtents

Channel 4 Channel
Feature 1U/Digital Amp/2 Ohms Stable
8Ω Stereo Power (RMS) 2,000W X 4CH
4Ω Stereo Power (RMS) 3,400W X 4CH
2Ω Stereo Power (RMS) 4,760W X 4CH
Warranty 3 Years

Packging & Delivery

Min Order1 piece

Briefing

D4-2000 4 Channel 1U Class D Digital power amp. Suit for Top speaker, full range speaker,Line array speaker!

Detailed

D4-2000 FEATURE:

●4 Channel Class D Digital power amplifier

●Mini 1U size,convenient for Touring Applications

●Suit for Top speaker, full range speaker,Line array;

●Work Under 2Ω steadily !

●Precise and Reasonable circuit structure

●Bring supper reliable sound

●Bridge-mode operation

●Temperature protection;Over current protection;Short circuit protection built-in

●Nippon Chemi-Con capacitor

D SERIES HIGH POWER DIGITAL AMPLIFIER (DSP can be added)
Model		D2-3000	D2-3500	D2-4200	D4-2000	D4-3000
EIAJ Test Standard,1 kHz, 1% THD	8Ω/Stereo	2 x 3000W	2 x 3500W	2 x 4200W	4 x 2000W	4 x 3000W
	4Ω/Stereo	2 x 5000W	2 x 6300W	2 x 7800W	4 x 3400W	4 x 5000W
	2Ω/Stereo	2 x 7140W	2 x 7400W	2 x 8500W	4 x 4760W	4 x 6500W
	8Ω/Bridge	1 x 10200W	1 x 12500W	1 x 15600W	2 x 6800W	2 x 10000W
	4Ω/Bridge	1 x 14280W	1 x 14800W	1 x 17000W	2 x 9520W	2 x 13000W
Alternating Current Power Supply
Power		PFC Power
Rated power demand		100-240V±10%, 50/60Hz
Operation voltage		90V-270V
Power correction factor cos(φ)		>0.95 @ >500W
Standby		47W and 0.8A
Gain,Sensitivity		32dB,35dB,38dB,41dB
Maximum Output Voltage/Current		185V/85A (370V in the BRIDGE MODE)
Power Comsumption		230V (115V in the BRIDGE MODE)
Temperature
Environment temperature		0°-45C / 32′-113*F
Cooling system		Tunnel through cooing system
Performance
Frequency Response		20Hz - 20kHz (1W@8Ω,+05 dB)
Signal-to-Noise Ratio		>110 dBA (20 Hz- 20 kHz A weighted)
Crosstalk		>66 dB @ 1 kHz
Input Impedance		10 kΩ balanced
Total Harmonic Distortion(THD)		<0.5% from 1 W to full power (Typitcal value<0.05%)
Intermodulation Distortion(IMD)		<0.5% from 1 W to full power (Typical value< 0.05%)
Damping Factor (8 ohms)		>5000 @ 20-200 Hz
Slew Rate		50V/μs @ 8Ω
Front Panel
Indicator LED/per channel		One PCS Green LED: the input signal of XLR ≥ -40dB; Four pieces Green LED： display the output signal(-20dB,-10dB,-5dB,-3dB)of SPEAKON 1 piece dual LED(Yellow and Red): Protective state/Clip stste/Over heat/Over load
Power Switch		Press "I"-on; Press "O"-off.
Dust-proof		Two pieces dust-proof cotton, it can take off to clean from the bottom of front pannel
Application
Signal in-connection		4 Channel: One balanced XLR(with lock)female per channel; 2 Channel One balanced XLR(with lock)female and one balanced XLR male per channel.


Signal out-connection		One SPEAKON per channel connect to loudspeakers
Power cord		Fited to the device, and the CSA(cross sectional area)of the cord is 3 x 2.5mm², and the card is 1.5 meters long.

Multiple-Functions Switch		Two Sensitivity Switches. One Mode Switch and one Clip Switch.
Structure(The size and weight depend on different series and shipping demand )
Dimensions		482 x 44 x 380mm³/482 x 44 x 470 mm³
Net weight		10Kg/12kg
Packing size		580 x 580 x 119mm³/615 x 615 x 119 mm³
Shipping weight		12Kg/14Kg

FRONT PANEL FEATURE

REAR PANEL FEATURE

Dimensions and Cooling System

NOTE:
The size is 437mm inside of the device(without the cover plate and front panel).The size is

around 472mm of the complete device,but a little bit different size in the different front

panel.Some series with different size that had not shown, please learn it in the parameter.

Tunnel through cooling system
Cold air comes in from the front panel of the equipment, forms a duct through the radiator

to take the heat away and out from the rear panel of the equipment.
