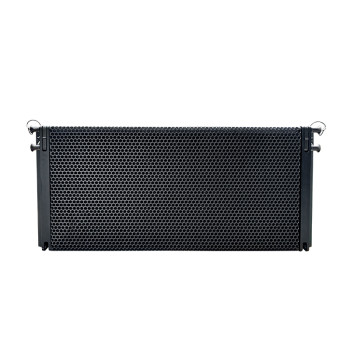

3 way dual 10 inch audio line array speaker

group name: LINE ARRAY SPEAKER

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: VT-08

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 18:51:28 GMT

contact supplier

Paramtents

Type 3-way passive
Components 2 x 10"/1 x 8"/2 x 1.4"
Dispersion 80°
SPLmax 142 dB
Weight 34 kg / 75 lb

Packging & Delivery

Min Order1 piece

Briefing

VT-08 is coated with polyurea paint, which is waterproof, high temperature resistant.

Detailed

3-way passive line array loudspeaker
Frequency response (-5 dB standard)	67 Hz - 18 kHz
Maximum SPL	142 dB
Nominal impeadance	8 Ω
Power Handling Capacity (RMS/Peak 10ms)	500/2000 W
Nominal dispersion angle (horizontal)	80°
Splay angle settings	0° - 14° (1° increment)
Components	2 x 10" driver / 1 x 8" driver
	2 x 1.4" exit compression driver
	passive crossover network
Dimensions (H x W x D)	310 x 700 x 460 mm 12.2 x 27.5 x 18"
Weight	34 kg/75 lb

VT-08+VT-SUB

FEATURE

●High performance 3-way passive line array speaker

●The cross-coupling design enables smooth superposition of adjacent frequency bands, and an exceptional 80° horizontal constant directivity dispersion control nominally being maintained down to 250 Hz.

●Can form a vertical line array suspension with up to 24 speakers.

●It can form an independent line array system, or can be combined with multiple VT-SUB speakers to form a system.

●The VT-08 cabinet is made of high-quality Russian plywood, and the surface is coated with polyurea paint, which is waterproof, high temperature resistant and impact resistant.

●The front panel of the speaker is protected by a hard metal grille with acoustically transparent foam behind the grille.

●There are handles on the sides, and two additional recessed handles are provided at the bottom of the rear of the cabinet.
