18 inch Cardioid passive subwoofer speaker

group name: SUBWOOFER SPEAKER

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: VT-SUB

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Fri, 22 Nov 2024 08:21:24 GMT

contact supplier

Paramtents

Type Passive
Components 18"/12"
Dispersion Cardioid
SPL max 137 dB
Weight 64 kg / 141 lb

Packging & Delivery

Min Order1 piece

Briefing

The cardioid dispersion pattern reduces the reverberant field at low frequencies and provides low frequency reproduction.

Detailed

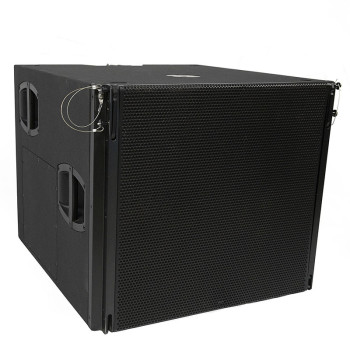

High performance flyable cardioid subwoofer
Frequency response (-5 dB standard)	37 - 115 Hz
Maximum SPL	137 dB
Nominal impeadance	8 Ω
Power Handling Capacity (RMS/Peak 10ms)	800/3200 W
Nominal dispersion angle (Horizontal)	0° and 2.5°
Splay angle settings	0° - 14° (1° increment)
Components	1 x 18" driver
Components	1 x 12" driver
Dimensions (H x W x D)	606 x 700 x 830 mm
Dimensions (H x W x D)	606 x 700 x 728 mm ( without wheels)
Weight	64 kg/141 lb

FEATURE

●The VT-SUB is an actively driven high performance cardioid subwoofer powered by a single amplifier channel.

●The cardioid dispersion pattern reduces the reverberant field at low frequencies and provides the greatest accuracy of low frequency reproduction.

●The VT-SUB can be mounted on top of the VT-08 and acts as a low frequency extension. Can also be used as a stand-alone subwoofer group, ground stacked.

●The front panel of the speaker is protected by a hard metal grille with acoustically transparent foam behind the grille.

●There are handles on the sides, and there is a screw hole on the top of the cabinet to install the speaker bracket.

VT-08+VT-SUB
