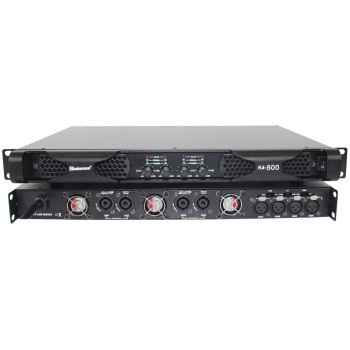

Sinbosen k4-800 800 watt 4 channel professional 1u class d digital 4 ohms stable power amplifier

group name: 4 Ohms Stable Amplifier

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: K4-800

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:42:47 GMT

contact supplier

Paramtents

Stereo/output power 8Ω/1KHz 800Wx4CH
Stereo/output power 4Ω/1KHz 1200Wx4CH
Bridge/output power 8Ω/1KHz 2400Wx2CH
Bridge/output power 4Ω/1KHz 3100Wx2CH
THD（10% -1KHz） <0.1%
Signal Noise Ration >106dB
Damping coefficient >600
Channels 4 Channels Power Amplifier
Class Class D Power Amplifier
Feature 1U Power Amplifier
Voltage 90-240V
Application Home theater/Karaoke/Party/Performance

Packging & Delivery

Min Order1 piece

Briefing

Sinbosen K4-800 4 channel professional 1u class d digital power amplifier for line array speaker
800WX4CH,8Ohm/1200WX4CH,4Ohm

Detailed

Class D digital power amplifiers are popular among users at home and abroad because of their environmental protection, energy saving, small size and utilization rate of more than 97%. Products are sold in Europe, America and other countries. You will find the Class D amplifier is cost-effective, stable, and fully protected amplifiers.

Performance characteristics:

✔ Volume step control.

✔ Balanced input XLR stereo (two channels), stereo and bridge modes of operation.

✔ Independent limiting, overload, overheating and short protection circuit.

- Each channel has independent overpressure and overheating.

- Load short-circuit protection.

- There is an automatic limiting function to prevent damage to the sounder.

✔ Use NTC boot soft start.

✔ With PFC automatic voltage regulator circuit.ssional class d

Digital Amplifier K4-800 Feature

1. Use Class D power amplifier module. Unique peak clipping limiter and ripple reduction.

2. The perfect protection system effectively reduces the losses caused by improper use.

3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.

4. 1U design, its light weight and very small space occupation rate.

5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.
