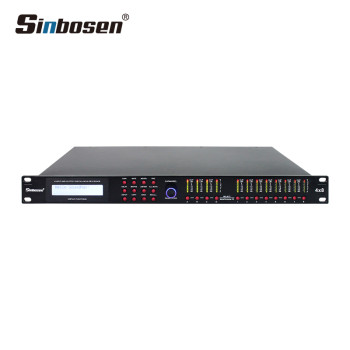

Sinbosen 4 INPUT 8 OUTPUT DIGITAL AUDIO PROCESSOR DISPLAY FUNCTIONS
- group name
- AUDIO PROCESSOR
- Min Order
- 1 piece
- brand name
- Sinbosen| Audio sound system manufacturer
- model
- AD48
- Nearest port for product export
- Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow
- update time
- Thu, 21 Nov 2024 21:17:08 GMT
Paramtents
Type Digital audio processor
Frequency Response 20Hz-20kHz;-0.5dBu
Number of Channels 4 input 8 output
Power Requirements 25w
Power Supply Switching Power Supply
Operating Voltage AC 85V -250V /50-60Hz
Net Weight 6kg
Color Black
Packging & Delivery
-
Min Order1 piece
Briefing
Sinbosen 4 INPUT 8 OUTPUT DIGITAL AUDIO PROCESSOR DISPLAY FUNCTIONS AS-4.8 FOR LOUDSOEAKER MANAGEMENT.
Detailed
4 input 8 output DIGITAL AUDIO PROCESSOR Software Running Environment
Operating system request: windows XP、Windows 7 32Bit 、windows 7 64Bit
Storage space occupation: 50Mb
Network environment: 100m LAN or wireless router
①LCD Screen
ARM version
Control IP address
Location description
Custom properties
Electric running time
②Audio Function
Gain, Gate, Xover, PEQ, Delay, Matrix, Limiter, All Mute, Setup, Copy, Save, Recall
③DataWheel
Data alignment
④Input Level Indicator Light
Above is input signal indicator light. When the input signal exceeds - 40dBu, the signal indicator light is illuminated, indicating that the audio signal is input from the corresponding channel. Below is auxiliary button and mute switch.
⑤Output Level Indicator Light
Above is output signal indicator light. When the output signal exceeds -40dBu, the signal indicator light is illuminated, indicating that the audio signal is output from the corresponding channel. Below is auxiliary button and mute switch.
①Power Switch
②AC In
Support 100V~240V AC voltage, please use the standard power cable, use power outlet with grounding.
③RS-232 Interface
Use to connect the third - party central control system.
④Ethernet Interface
Connect to switch using standard 5 Ethernet networks, also can connect directly to laptop.
⑤Audio Input Interface: Channel 1～4
Standard XLRF input, balance audio input interface.
⑥Audio Output Interface: Channel 1～8
Standard XLRM output, balanced audio output interface.
