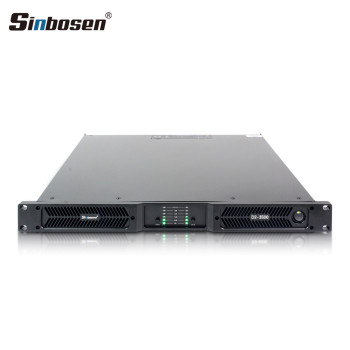

Sinbosen high power 2 ohm 7435 watts per channels 2CH class d subwoofer amplifier D2-3500

group name: 2 Ohms Stable Amplifier

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: D2-3500

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:48:11 GMT

contact supplier

Paramtents

2Ω Output power 2x7400W
4Ω Output power 2x6300W
8Ω Output power 2x3500W
Voltage 90V-240V
Special service OEM service offered
Damping factor >5000
Minimum load impedance Stereo 2Ω stable amplifier
Gross weight 15kg
Type 1u digital power amplifier
Feature 2 channels 7900 watt high power amplifier
For 18/21 inch subwoofer
Application Show/Stage/Event/Karaoke/Club/Concert/School

Packging & Delivery

Min Order1 piece

Briefing

Sinbosen high power 2 ohm 7900 watts per channels 2CH class d subwoofer amplifier D2-3500 for 18/21 inch subwoofer.

Detailed

D2-3500 Power Amplifier

1U Amplifier	D2-3500
Rated Output Power(THD+N=1%, 1kHz continue sine wave, all channel driving)	8Ω/Stereo	2x3500W
	4Ω/Stereo	2x6300W
	2Ω/Stereo	2x7400W
	16Ω/Bridge	1x6400W
	8Ω/Bridge	1x10700W
	4Ω/Bridge	1x14870W
Bridge RMS voltage(THD+N=1%, 1kHz)	165V
Slew rate(1kHZ, low-pass filter bypassed)	50V/us
Sensitivity(Rated Power,1kHz)	selectable 41dB 38dB 35dB 32dB
THD+N(10%Rated Power,typical)	0.01%
IMD-SMPTE(10%Rated Power,typical)	0.01%
DIM30(10%Rated Power,typical)	0.01%
Cross-talk(20Hz-1kHz,below Rated Power)	≥90dB
Frequency response(10% Rated Power,20Hz-20kHz,8Ω	±0.2dB
Input impedance	20kΩ (Balance),10kΩ(Unbalance)
Damp factor(8Ω,20Hz-200Hz	≥5000
SNR(A weighted 20Hz-22kHz)	≥112dB
Main power	90~260VAC,50~60Hz
Protection	Under voltage, DC, Over temperature,Over load limiter,Short protection
Size(WxHxD)	483x44x465mm
Net weight	12kg

PROFESSIONAL POWER AMPLIFIER

1 Performance overview

a,High efficiency and energy saving, operation cost is low,

b,Compact and light weight,structure is firm.

c,Comply with the safety and EMC standards.

d,90~260VAC / 50~60HZ Wide range power supply.

e,First-class quality, thanks for the components from international high-end manufacturers.

f,Temperature control fan for quiet operation.

g,Modular design and maintenance is convenient.

h,Very suitable for mobile show.

i, Reasonable design makes you feel relaxed in the process of using.

2 Environmental protection, energy saving, cost saving

Advantages of high efficiency:

* Low working temperature, rlability will be improved obviously.

* The size and weight are only 1/3 of tradition amplifier.

" The cost for transportation, handling, installation will reduce obviously.

* Saving energy, reducing operating costs

* Environmental protection

3. Cooling instructions: Good heat dissipation /High quality fans

The cooling mode of the equipment is as follows: the cold air is sucked through the ventilation hole of the front panel, and the heat is taken out from the rear panel.

4. Feature:

Subwoofer amplifier: For subwoofer 18/21 inch subwoofer.

Channel: 2 channels high power amplifier.

Class: Class d subwoofer amplifier.

2 ohms: 2 ohms stable amplifier.

Size: 1u digital power amplifier 15kg.
