V-932 Active 12 inch line array speaker lightweight

group name: LINE ARRAY SPEAKER

Min Order: 4 piece

brand name: Sinbosen| Audio sound system manufacturer

model: V-932

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 23 Nov 2024 21:39:57 GMT

contact supplier

Paramtents

Type Two-way line array speaker
Frequency Response 75 Hz - 20 kHz
Application STAGE MONITOR ,STUDIO MONITOR
Voltage 90-130V or 200-240V

Packging & Delivery

Min Order4 piece

Briefing

12 inch line array speaker ,this line arrray is very popular , It's a 2 way full range speaker

Detailed

Specification

V-932 Specification
Frequency Range (-10 dB):	57 Hz - 20 kHz
Frequency Response (±3 dB):	75 Hz - 20 kHz
Coverage pattern:	100° x 15° nominal (horizontal x vertical)
Coverage pattern:	800W
Power (Continuous/Program/Peak):	Passive: 800 W / 1600 W / 3200 W Bi-amp LF: 800 W / 1600 W / 3200 W Bi-amp HF: 75 W / 150 W / 300 W
Maximum System SPL :	Passive: 130 dB; Bi-amp LF: 130 dB; Bi-amp HF: 139 dB
	Neodymium magnet LF: 1 x 2262HPL, dual voice coil HF: 3 x 2408H, 1.5'' diaphram
	95dB
	Black Emery paint
Dimensions (H x W x D):	343 mm x 597 mm x 376 mm
Weight (KG):	24kg

V-932 Brief Description

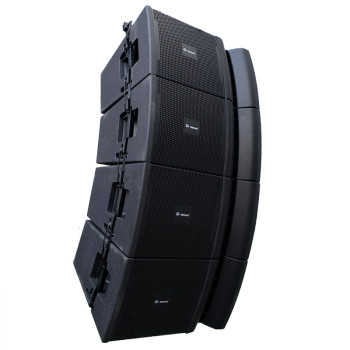

V-932 is a lightweight, compact line array loudspeaker with a 12" dual voice coil differential driver, a neodymium magnet woofer and three 1.5" treble compression drivers. It is perfectly suitable for sound reinforcement applications in various small and medium-sized halls.

Feature Of V-932:

●Neodymium magnets differentially drive woofers for high power handling and low weight.
●Professional compression driver design and unprecedented array coherence.
●Double angle rod socket, aiming flexible. The speaker can be mounted to a 35mm pole or tripod.
●Integrated rigging hardware for easy attachment of enclosures and optional array frames.

●V-932 is available in active and passive versions
