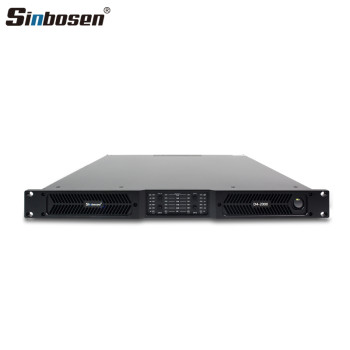

Sinbosen 2 ohm stable 4760 watts 4CH class d digital high power amplifier D4-2000

group name: 2 Ohms Stable Amplifier

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: D4-2000

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Thu, 21 Nov 2024 16:53:38 GMT

contact supplier

Paramtents

2Ω Output power 4CHx4760W
4Ω Output power 4CHx3400W
8Ω Output power 4CHx2000W
8Ω Bridge power 2CHx6800W
4Ω Bridge power 2CHx9520W
Voltage 90V-270V
Warranty 3 Years
Minimum load impedance Stereo 2Ω
Type Digital amplifier
Feature1 2 ohms stable amplifier
Feature2 1u digital amplifier
Channels 4 channels power amplifier
Class Class d power amplifier
Special service OEM service offered

Packging & Delivery

Min Order1 piece

Briefing

This is a real 2Ω stable power amplifier 4650 watt 2 ohms. It is powerful and better sound. Suitable for line array speaker.

Detailed

D4-2000 power amplifier

1U Amplifier	D4-2000
Rated Output Power(THD+N=1%, 1kHz continue sine wave, all channel driving)	8Ω/Stereo	4x2000W
	4Ω/Stereo	4x3400W
	2Ω/Stereo	4x4760W
	16Ω/Bridge	2x4000W
	8Ω/Bridge	2x6800W
	4Ω/Bridge	2x9520W
Bridge RMS voltage(THD+N=1%, 1kHz)	126.5V
Slew rate(1kHZ, low-pass filter bypassed)	50V/us
Sensitivity(Rated Power,1kHz)	selectable 41dB 38dB 35dB 32dB	selectable 38dB 35dB 32dB 29dB
THD+N(10%Rated Power,typical)	0.01%
IMD-SMPTE(10%Rated Power,typical)	0.01%
DIM30(10%Rated Power,typical)	0.01%
Cross-talk(20Hz-1kHz,below Rated Power)	≥90dB
Frequency response(10% Rated Power,20Hz-20kHz,8Ω	±0.2dB
Input impedance	20kΩ (Balance),10kΩ(Unbalance)
Damp factor(8Ω,20Hz-200Hz	≥5000
SNR(A weighted 20Hz-22kHz)	≥112dB
Main power	90~260VAC,50~60Hz
Protection	Under voltage, DC, Over temperature,Over load limiter,Short protection
Size(WxHxD)	483x44x465mm
Net weight	12kg

PROFESSIONAL POWER AMPLIFIER

1 Performance overview

a,High efficiency and energy saving, operation cost is low,

b,Compact and light weight,structure is firm.

c,Comply with the safety and EMC standards.

d,90~260VAC / 50~60HZ Wide range power supply.

e,First-class quality, thanks for the components from international high-end manufacturers.

f,Temperature control fan for quiet operation.

g,Modular design and maintenance is convenient.

h,Very suitable for mobile show.

i, Reasonable design makes you feel relaxed in the process of using.

2 Environmental protection, energy saving, cost saving

Advantages of high efficiency:

* Low working temperature, rlability will be improved obviously.

* The size and weight are only 1/3 of tradition amplifier.

" The cost for transportation, handling, installation will reduce obviously.

* Saving energy, reducing operating costs

* Environmental protection

3. Cooling instructions: Good heat dissipation /High quality fans

The cooling mode of the equipment is as follows: the cold air is sucked through the ventilation hole of the front panel, and the heat is taken out from the rear panel.
