Sinbosen dual 1000 watt RMS 4 channel amp fp power amplifier for top speaker

group name: Amplifier For Top Speaker

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: DS-8Q

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Sat, 23 Nov 2024 18:04:23 GMT

contact supplier

Paramtents

Certification CE, ROHS, TUV
Channel 4 Channel power amplifier
Color Blue, Black
8Ω Stereo Power 1000W*4CH
4Ω Stereo Power 1600W*4CH
Voltage 110V or 220V
Frequency Response 20 Hz - 34 kHz
Class TD Power Amplifier
Application Home Theatre, Karaoke Place, Stage, Show, Concert
Warranty 3 Years Warranty
Sample lead time 1-2 day
Special service OEM service offered

Packging & Delivery

Min Order1 piece

Briefing

Sinbosen 4 channel DJ professional 1000w switching mode supply power amplifier DS-8Q for sale.
4X1000W,8ohms, 4X1600W,4ohms.

Detailed

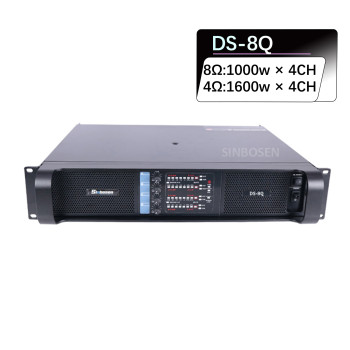

Sinbosen DS-8Q Pro Sound DJ Equipment Power Amplifier

DS-8Q power amplifier specification

8Ω Stereo Power (RMS): 1000W X 4
4Ω Stereo Power (RMS): 1600W X 4
8Ω Bridged Power (RMS): 3200W X 2
4Ω Bridged Power (RMS): 3800W X 2

Amplifier Type: dj amplifier 1000 watts

Amplifier Channels: 4 channels amplifier power amplifier
Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz

THD 20 Hz - 20 kHz for 1 W: <0.1%

Signal-to-Noise Ratio: >112 dBA

Channel separation (Crosstalk) at 1 kHz: >70 dB

Input Connectors (per channel): 3-pin XLR, electronically balanced

Output Connectors (per channel): Binding Posts 2-pole

Class: TD

TourClass Protection: ACL,IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input

Operating voltage, 220 V / 110 V nominal: 180-240 V / 90-130 V selectable

Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm

Level adjustment (per ch.): Front-panel potentiometer, 31 position detented from -inf to 0 dB

Amplifier Feedback

Sinbosen Audio FP SERIES Power Amplifier
FP Series	DS-7K	DS-9K	DS-14K	DS-6Q	DS-10Q	DS-20Q
8Ω Stereo Power(RMS)	1450WX2	1600WX2	2400WX2	625WX4	1350WX4	2200WX4
4Ω Stereo Power(RMS)	2800WX2	3000WX2	4400WX2	1250WX4	2100WX4	4000WX4
2Ω Stereo Power(RMS)	3500WX2	4500WX2	7000WX2	1500WX4	2500WX4	4500WX4
8Ω Bridged Power(RMS)	5600W	6000W	8800W	2500WX2	4200WX2	8000WX2
4Ω Bridged Power(RMS)	7000W	9000W	14000W	3000WX2	5000WX2	9000WX2

Must know before buying:

Full-range speaker [line array speaker, professional speaker]: the power of the power amplifier should be greater than 1.5 times or more;
Subwoofer speaker: The power of the amplifier should be more than 2 times or more, because the current of the low frequency speaker is larger than that of the full frequency speaker!

Warranty:

3 Years Warranty.
