Sinbosen audio digital processor D-260 high quality sound 2 In 6 out professional

group name: AUDIO PROCESSOR

Min Order: 1 piece

brand name: Sinbosen| Audio sound system manufacturer

model: D-260

Nearest port for product export: Guangzhou, Yantian,Shenzhen, Shekou,Shenzhen

Delivery clauses under the trade mode: FOB, CFR, CIF, EXW, FAS, CIP, FCA, DDP, DDU, Express Delivery, DAF

Acceptable payment methods: T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Westem Union, Cash, Escrow

update time: Mon, 25 Nov 2024 07:00:30 GMT

contact supplier

Paramtents

Type DSP digital audio processor
Color Purple
Application Concert, stage, KTV, Home Theatre
Power Supply Switching Power Supply
Warranty 2 years
Number of Channels 2 input 6 output
Power Requirements 25w
Frequency Response 20 Hz-20 kHz(±0.5dB)

Packging & Delivery

Min Order1 piece

Briefing

D-260 provides full bandpass, crossover configurations, independent output processing,full-time RTA for live sound application

Detailed

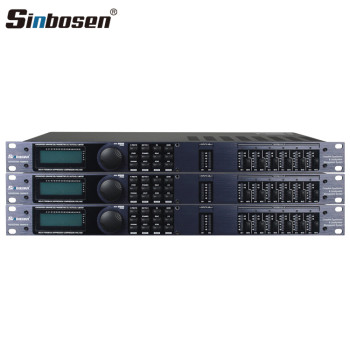

High-Quality Sound 2 In 6 Out Professional D-260 Audio Digital Processor

The D-260 digital audio processor has two inputs and six outputs. The front ends of both inputs include a 28-segment graphic equalizer with a total of 2.7 seconds of digital delay resources. D-260 digital audio processor design engineers understand the needs of users, designed a new generation of peripherals. From now on, only one piece of equipment is needed from the mixer to the amplifier, a controller that includes all the basic peripheral functions.

The D-260 provides full bandpass and crossover configurations as well as independent output processing and a full time RTA for live sound applications.

The D-260 processor is the most effective way to manage all aspects of post mixer processing and signal routing. It becomes the only device that you will need between the mixer and the power amps.

Specification

Type : D-260 digital audio processor
Model Number : D-260
Processor: D-260 Digital Processing Core
Number of Channels: 2 input 6 output
Power Supply: Switching Power Supply
Operating Voltage: AC 230V/50-60Hz
Power Requirements: 18 Watts
Input Connectors: Female XLR (Line), XLR RTA (Mic)
Output Connectors: Male XLR
Output /Input Type: Electronically balanced, RF filtered
Input Impedance: >40 kΩ
Output Impedance: 120 Ω
Dynamic Range (unweighted/weighted): >110 dB / >107 dB
THD+Noise @ 1 kHz: 0.002% typical
Frequency Response: 20 Hz–20 kHz(±0.5dB)
Interchannel Crosstalk: >110 dB, 120 dB typical
Propagation Delay: 0.6 MSecond
